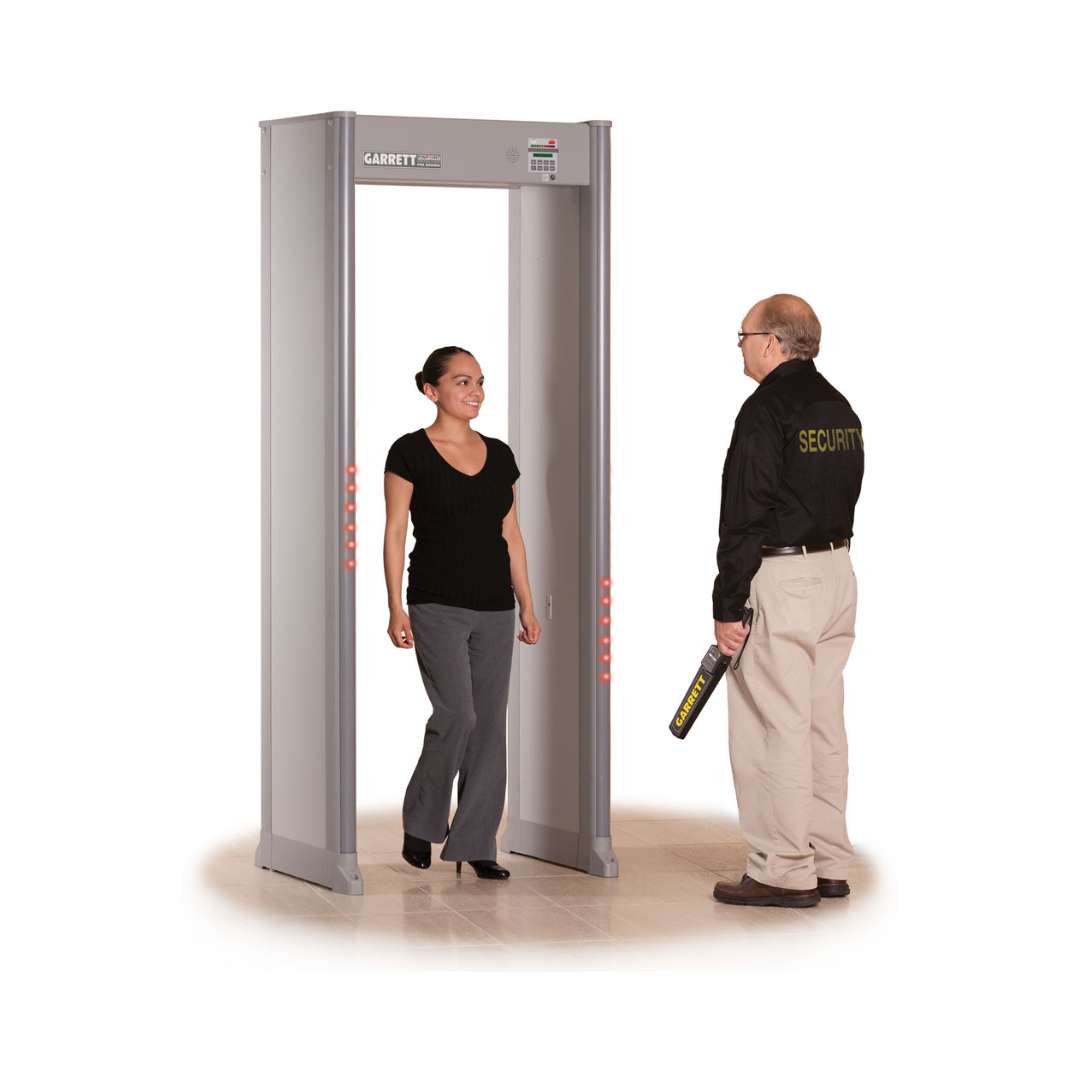

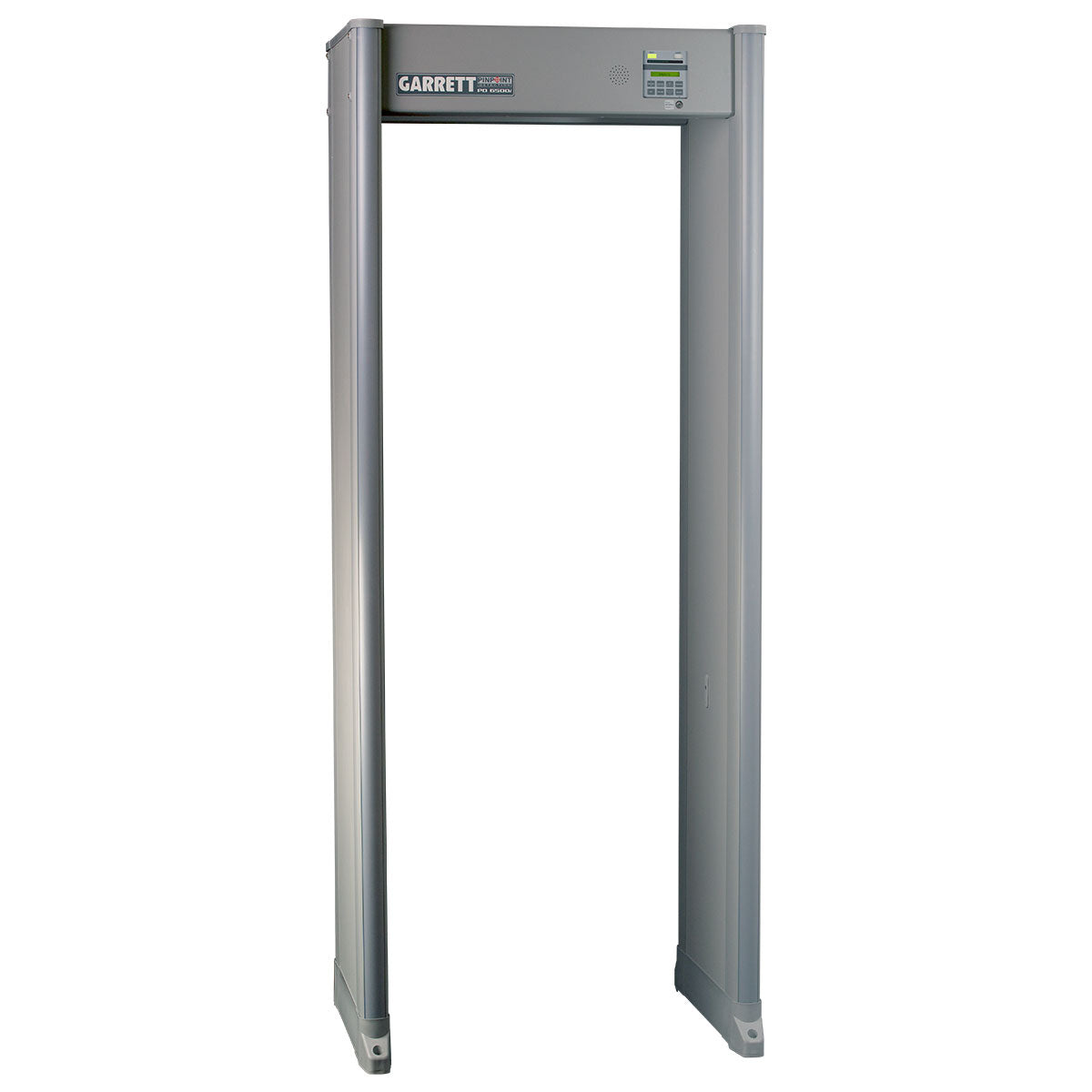

PD6500i Walk-Through Metal Detector

PD 6500i^™

Walk-Through Metal Detector

MEETS THE WORLD'S HIGHEST TEST CERTIFICATION

Models:

- Standard 30" Passageway (GMD-1168414)*
- Standard 30" Passageway + IP65 (GMD-1168418)
- ADA Compliant 32.5" Passageway (GMD-1168432)
- ADA Compliant 32.5" Passageway + IP65 (GMD-1168434)

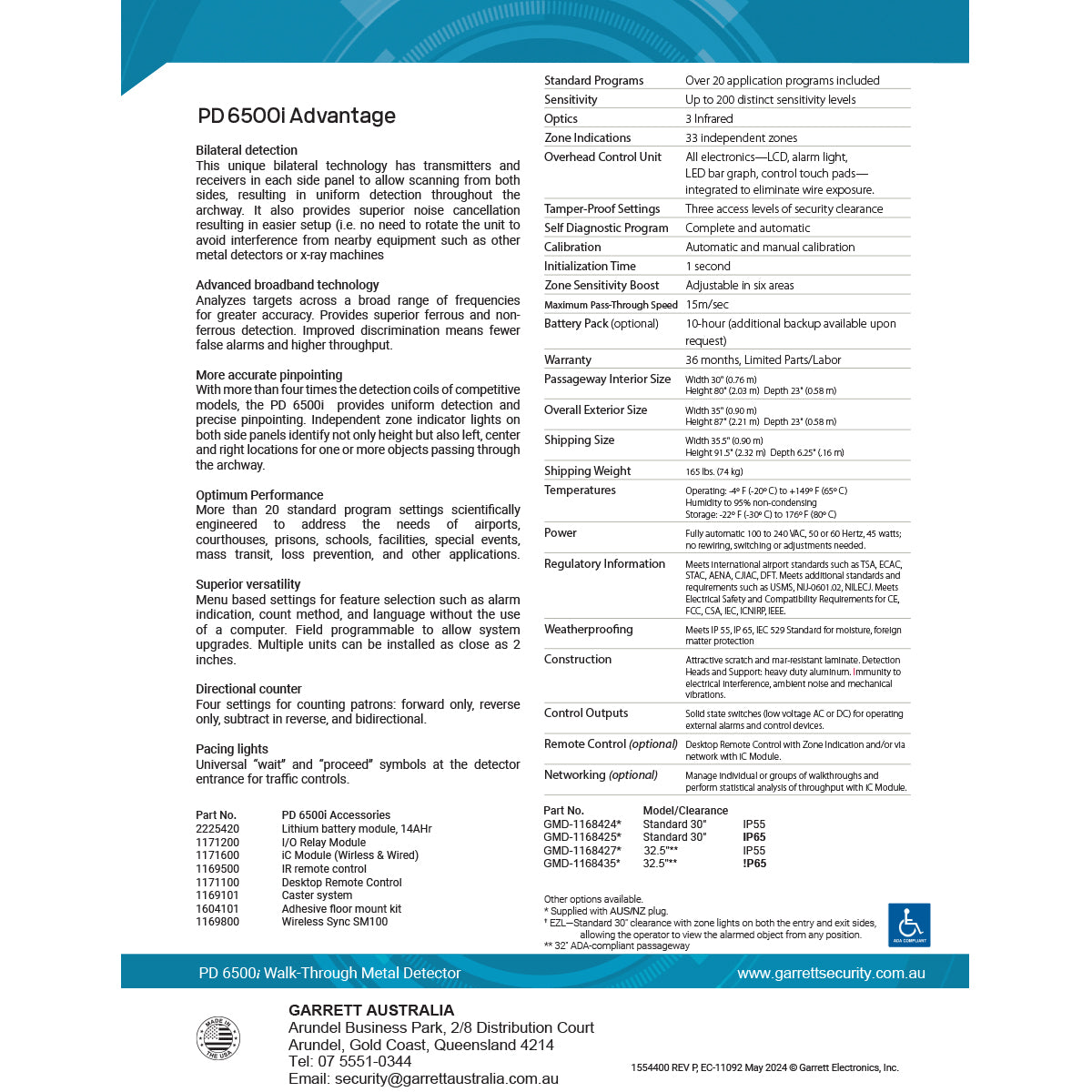

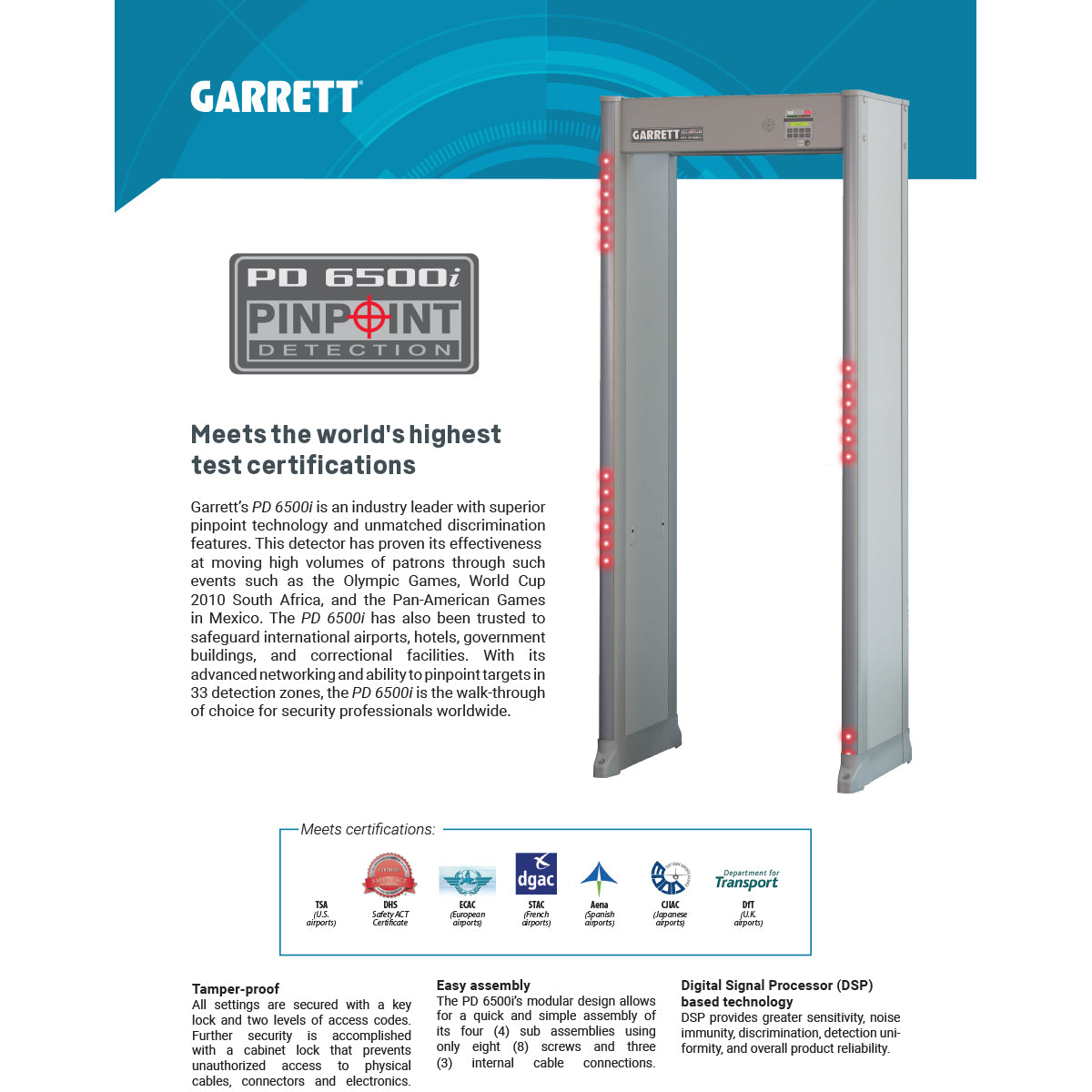

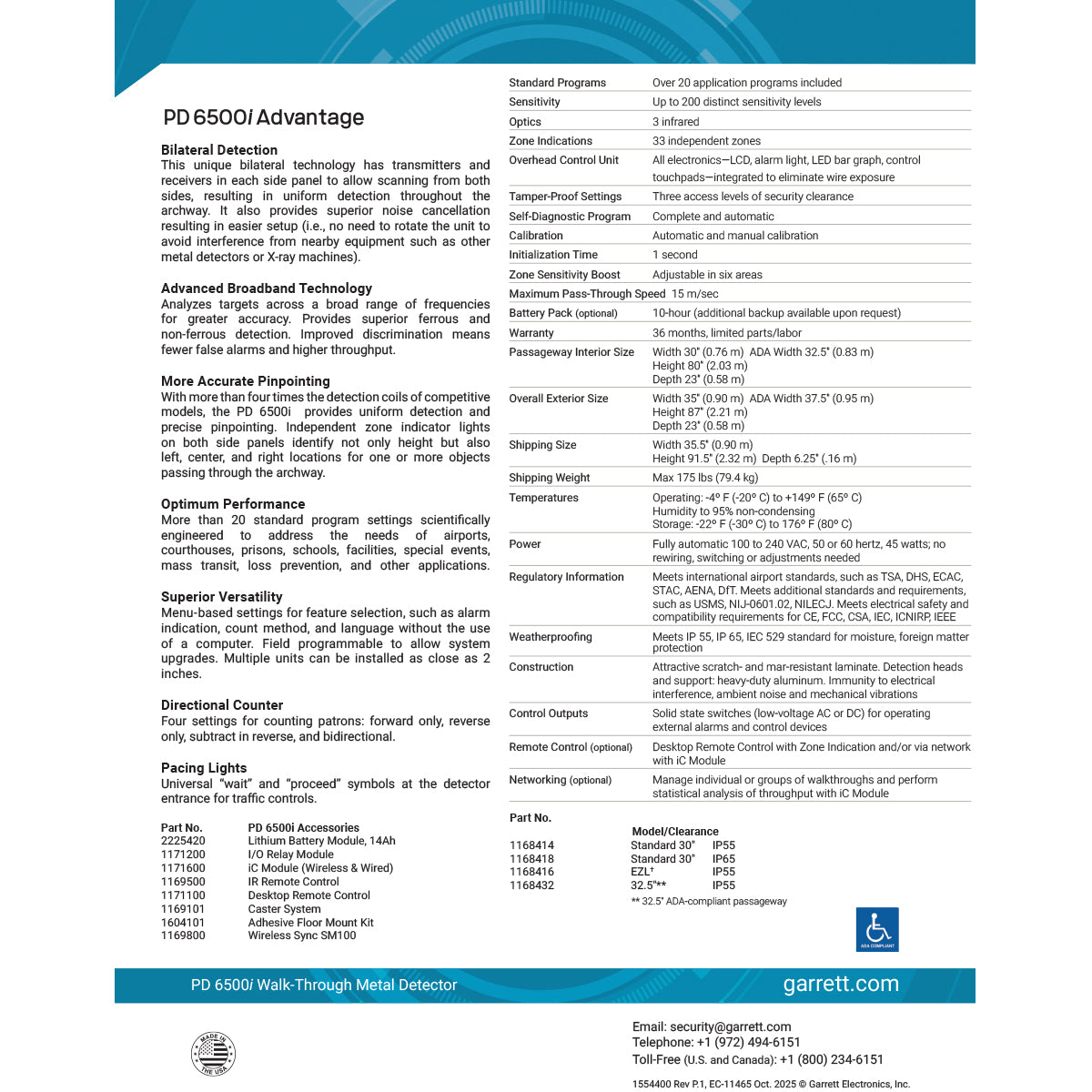

*Click Here: PD6500i Walk-Through Metal Detector Specification Sheet

ACCURATE PINPOINTING

Precise Detection: More than four times the detection coils ensure uniform detection and exact pinpointing.

Comprehensive Coverage: Identify object locations across left, center, and right zones for thorough security.

INTERNATIONAL SECURITY STANDARDS

Global Certification: Meets the highest standards, including TSA, ECAC, and more.

Trusted Worldwide: Certified for use in major international airports for top-notch security.

PORTABLE PROTECTION

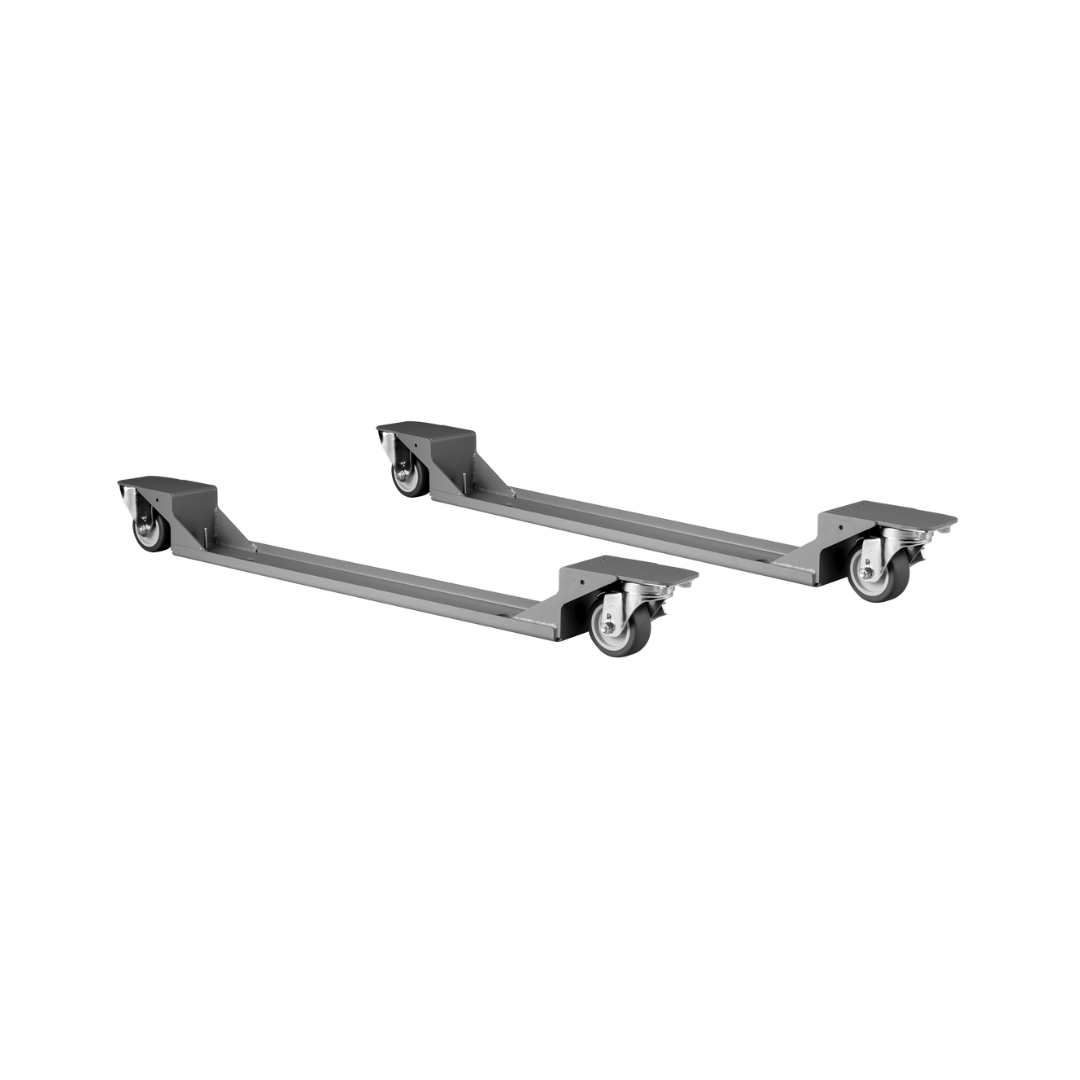

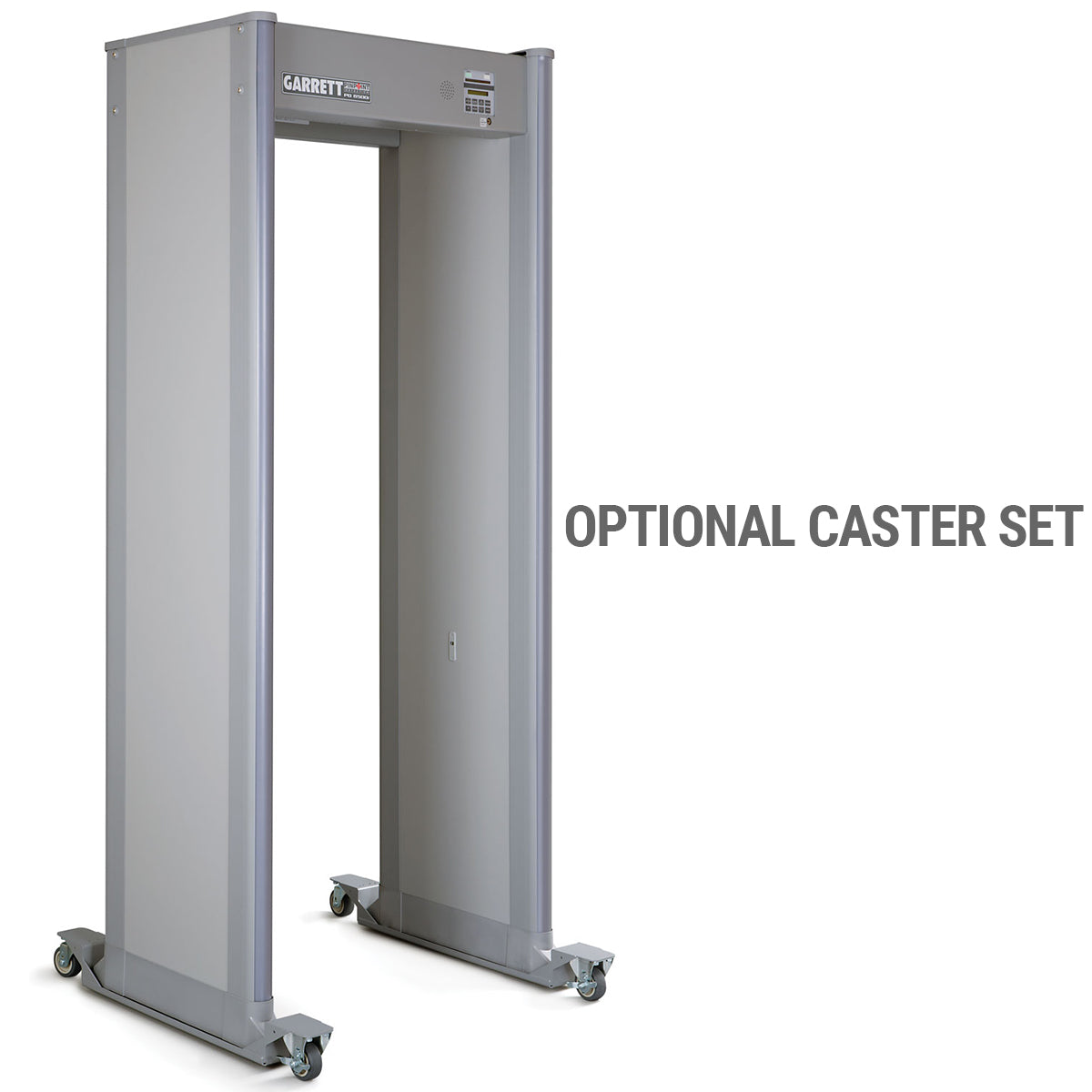

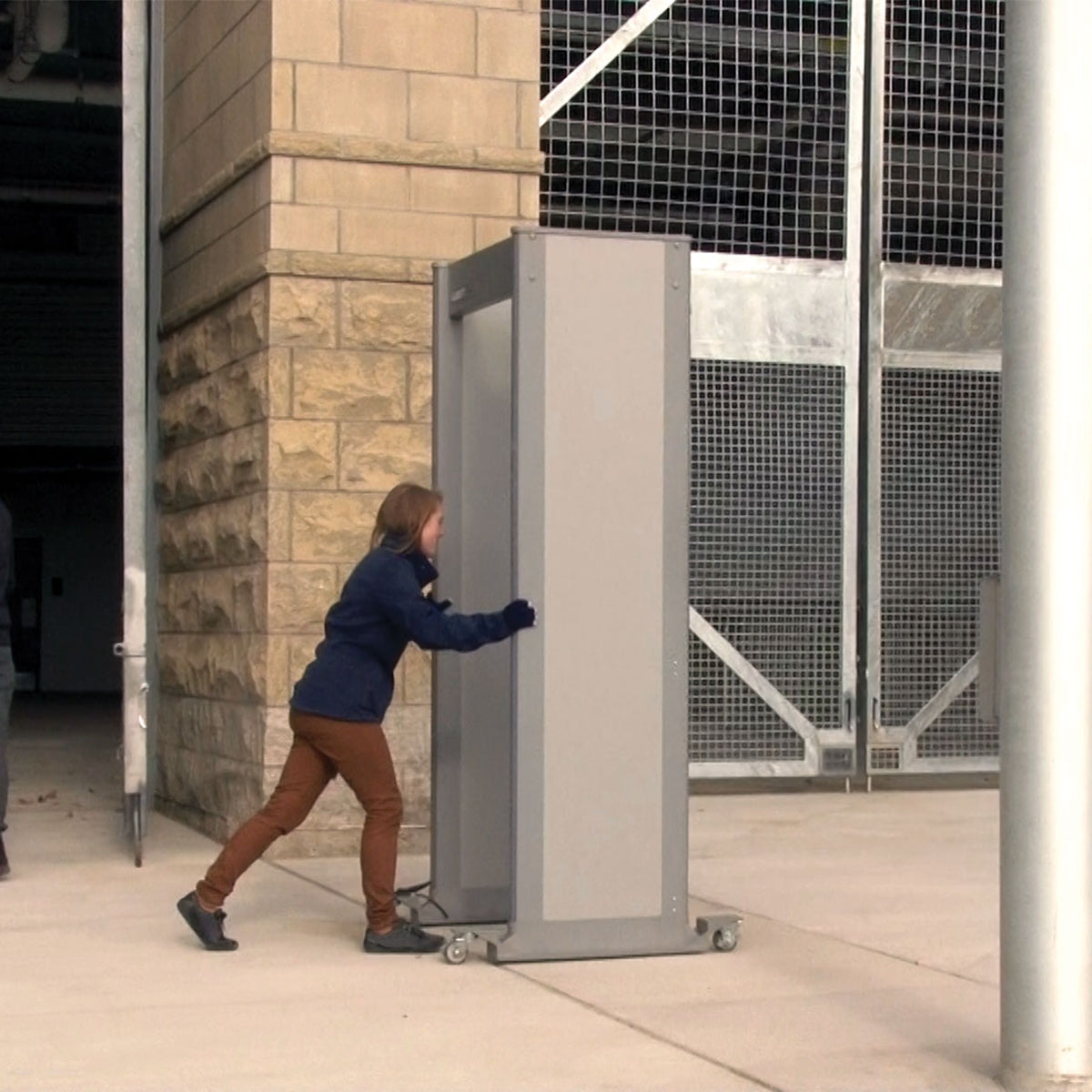

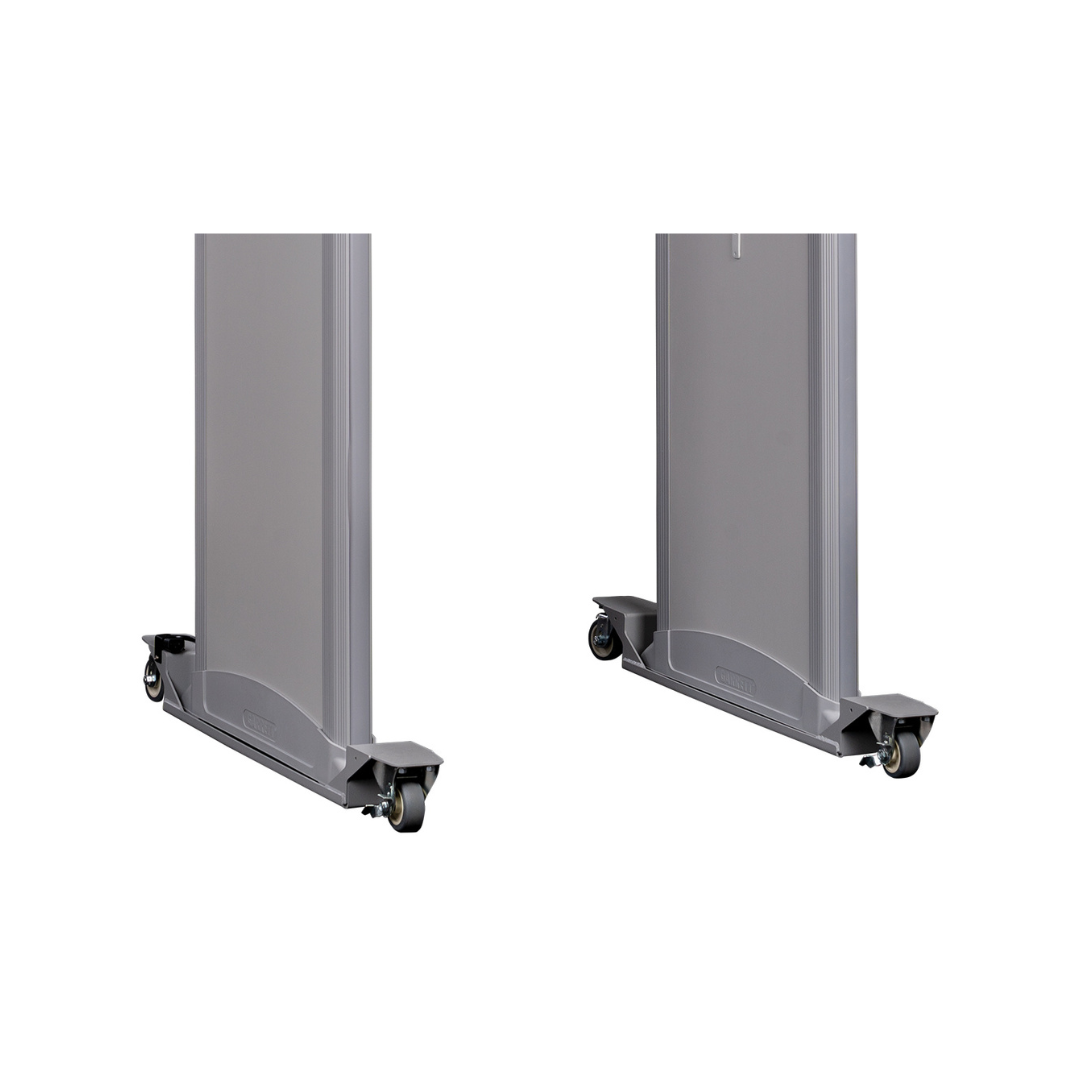

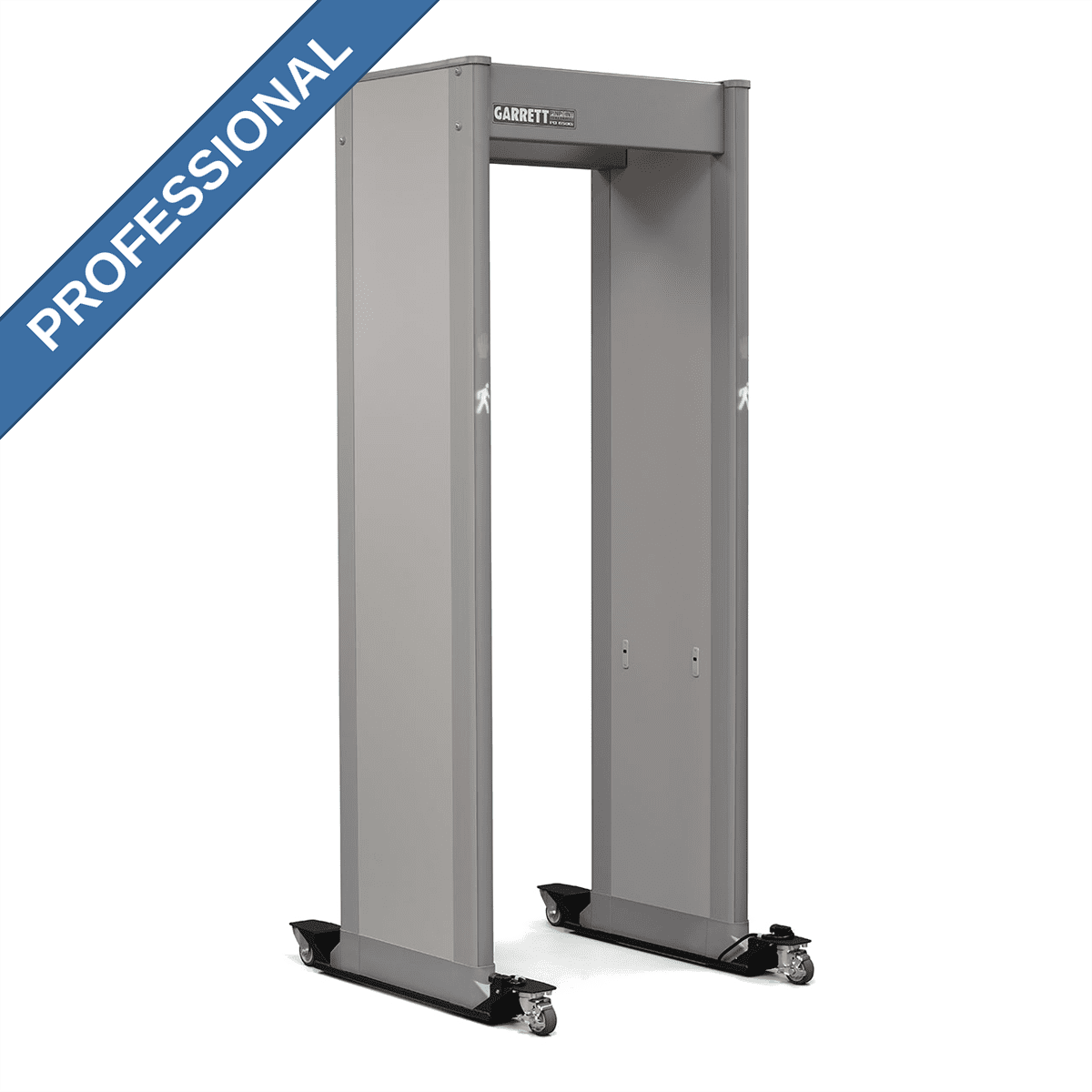

Rapid Deployment: Optional casters and battery module for quick, versatile setup.

Easy Mobility: Move the detector easily to different locations as needed.

ADDITIONAL FEATURES:

OPTIMUM PERFORMANCE

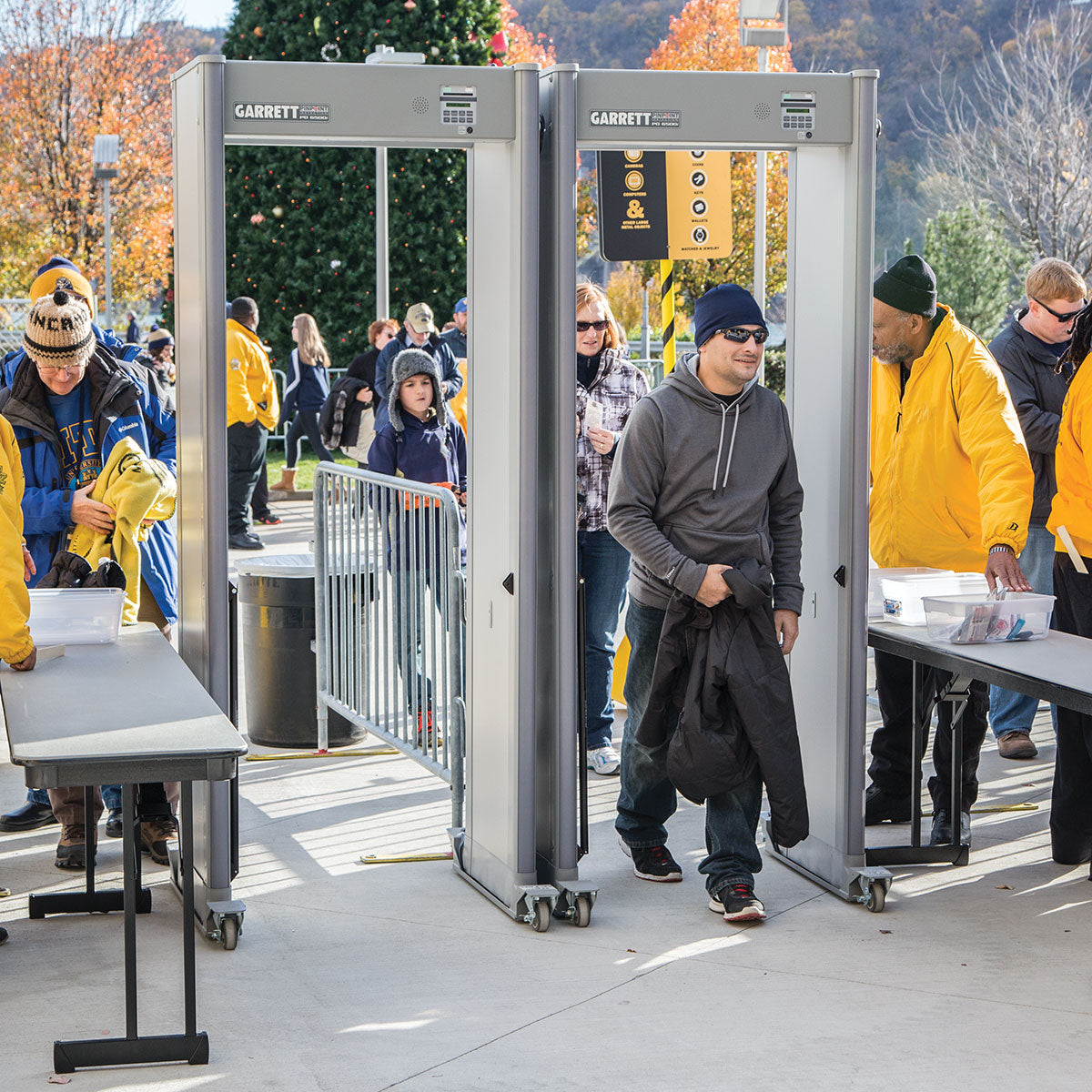

More than 20 standard programs for security versatility. Multiple units can be installed as close as 2 inches from each other.

DUAL DETECTION

With transmitters and receivers in each panel, the PD 6500i is the equivalent of two detectors in one. By scanning from both sides, the PD 6500i provides superior detection, uniformity and performance.

DIRECTIONAL COUNTER

With four settings for counting (forward, reverse, subtract in reverse, and bi-directional).

NETWORK ABILITY

Manage walkthroughs individually or as groups and perform statistical analysis via network with iC Module.

MULTI-BRAND COMPATIBILITY

Can be added to existing checkpoints without having to replace other brand units. Includes multiple channels and 2,300 selectable operating frequencies.

SUPERIOR VERSATILITY

Selectable settings designed for airports, courthouses, prisons, schools, facilities, special events, mass transit, loss prevention and many other applications.

TAMPER-PROOF

All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.Provides superior target analysis, ferrous and non-ferrous weapons detection, discrimination and higher throughput.

ADVANCED BROADBAND DETECTION TECHNOLOGY

Provides superior target analysis, ferrous and non-ferrous weapons detection, discrimination and higher throughput.

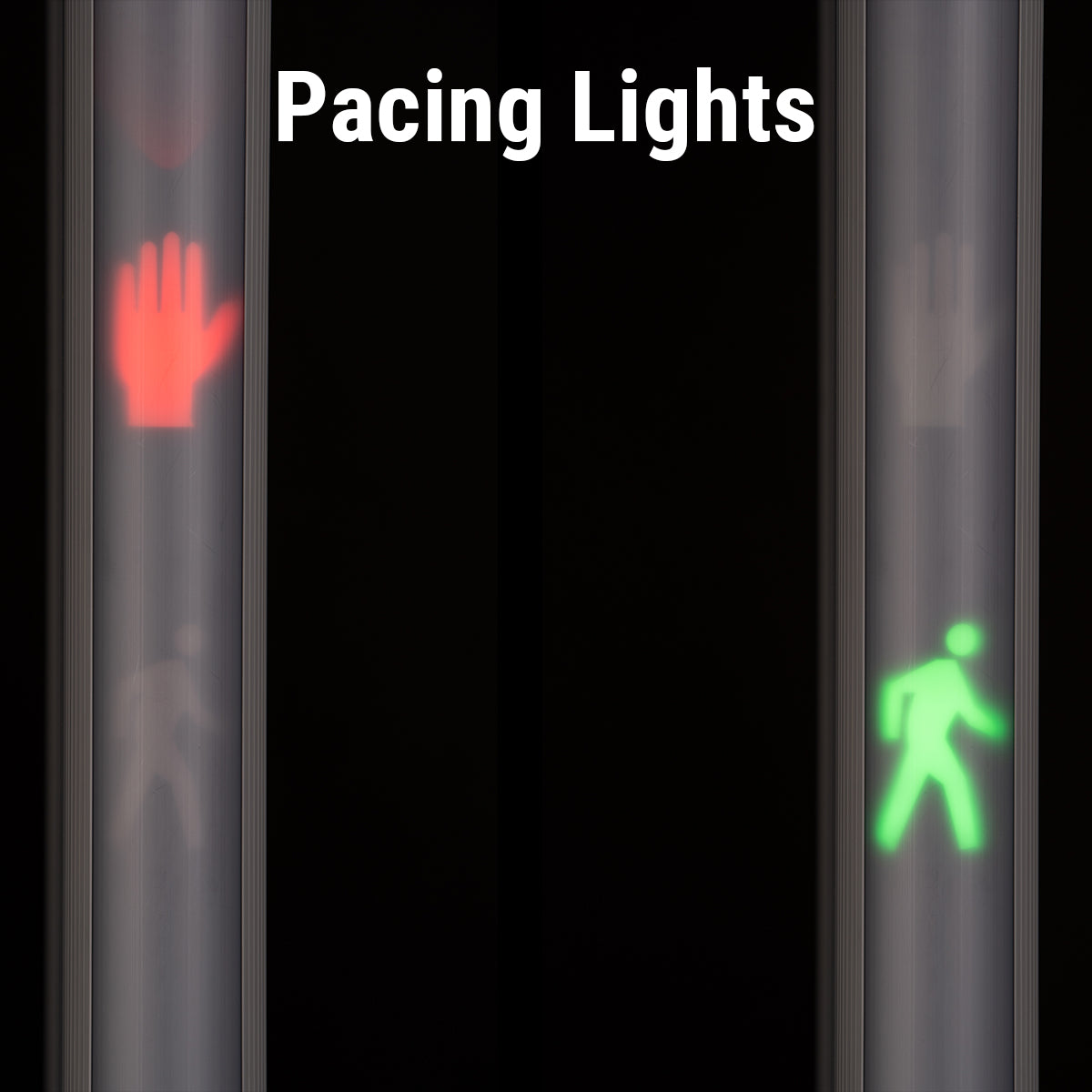

PACING LIGHTS

At the entrance display universal “wait” and “proceed” symbols for traffic control.

INTERNAL USB PORT

For updating software.

RANDOM ALARM FEATURE

Provides ability to randomly alarm on a selected percentage of non-alarming persons; adjustable from 0 to 50 percent.

ALARMS

Audible tone and volume adjustable. Bright LED visual alarm.

EASY ASSEMBLY
The PD6500i's modular design allows quick and simple assembly of its four (4) sub assemblies using only eight (8) screws and three (3) internal cable connections. All Garrett Walk Through Metal Detectors are very easy and simple to assemble, configure and operate. No special skills are required. Below is an "Assembly Video" with step-by-step instructions and we also offer a free online training course.

Dimensions for standard 30" model

Passageway Size	Overall Exterior Size
Width: 0.76 m	Width: 0.90 m
Height: 2.03 m	Height: 2.21 m
Depth: 0.58 m	Depth: 0.58 m
Shipping Size	Weight
Width: 0.90 m	Weight: 64 kg
Height: 2.32 m	Shipping Weight: 74 kg
Depth: 0.16 m
